1/16 Sd.Kfz.251 Wurfrahmen Rocket Conversion kit Des Werk Dragon Trumpeter

.... Limited Run .....

This is a Conversion 1/16 kit for Des Werk and/or Trumpeter Sdkf 251D kits (not included, assembly and painting required)

Highly detailed parts, wood grain,

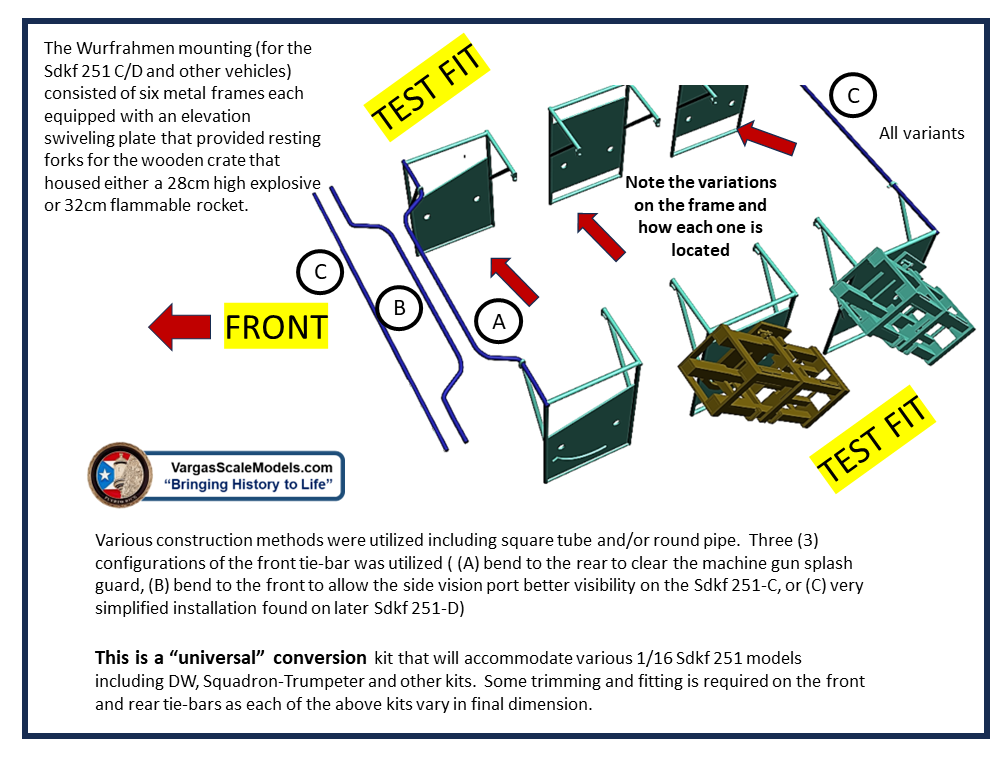

The Wurfrahmen mounting (for the Sdkf 251 C/D and other vehicles) consisted of six metal frames each equipped with an elevation swiveling plate that provided resting forks for the wooden crate that housed either a 28cm high explosive or 32cm flammable rocket.

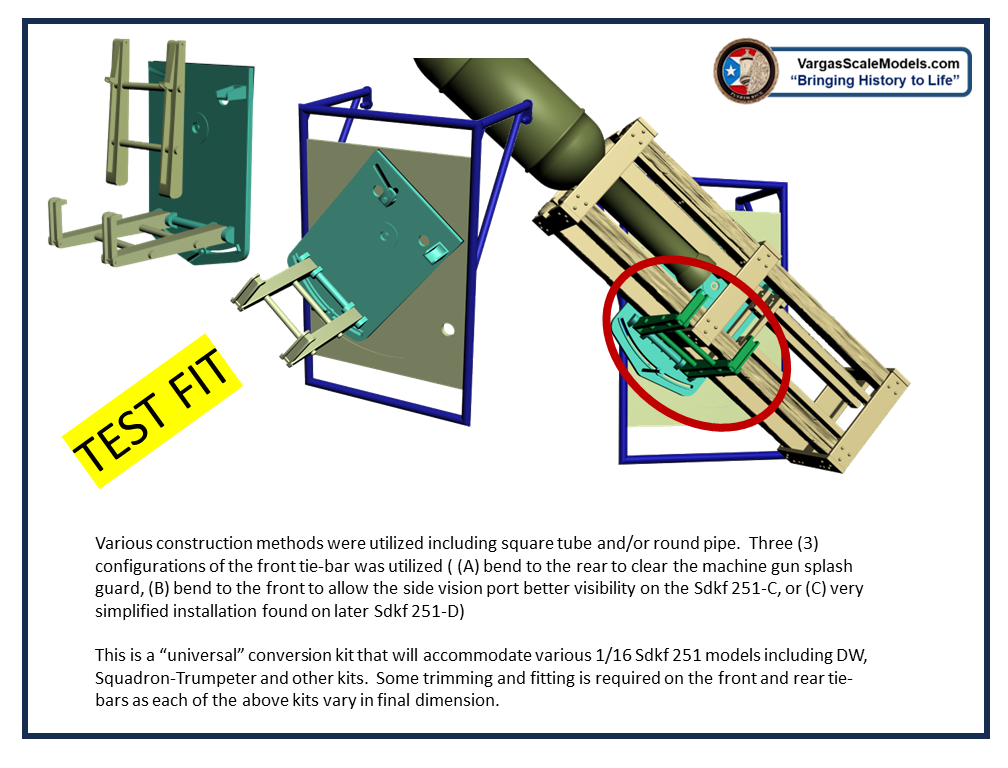

Various construction methods were utilized including square tube and/or round pipe. Three (3) configurations of the front tie-bar was utilized ( (A) bend to the rear to clear the machine gun splash guard, (B) bend to the front to allow the side vision port better visibility on the Sdkf 251-C, or (C) very simplified installation found on later Sdkf 251-D)

This is a “universal” conversion kit that will accommodate various 1/16 Sdkf 251 models including DW, Squadron-Trumpeter and other kits. Some trimming and fitting is required on the front and rear tie-bars as each of the above kits vary in final dimension.

Parts Count 50

Parts List X 6

1- Side Rack

2- Elevation Rack

3- Suspension Arm Folded (Travel)

4- Suspension Arm

Extended (Loaded/Firing)

5- Wooden Rack

6- Elevation Stakes (X4)

7- Rack front retainer

8- Tie-rod curved (X2)

9- Tie-rod straight (X2)

SEXY, SEXY, SEXY, design. A snap-shot at cool history.

A must-have for armor enthusiasts.

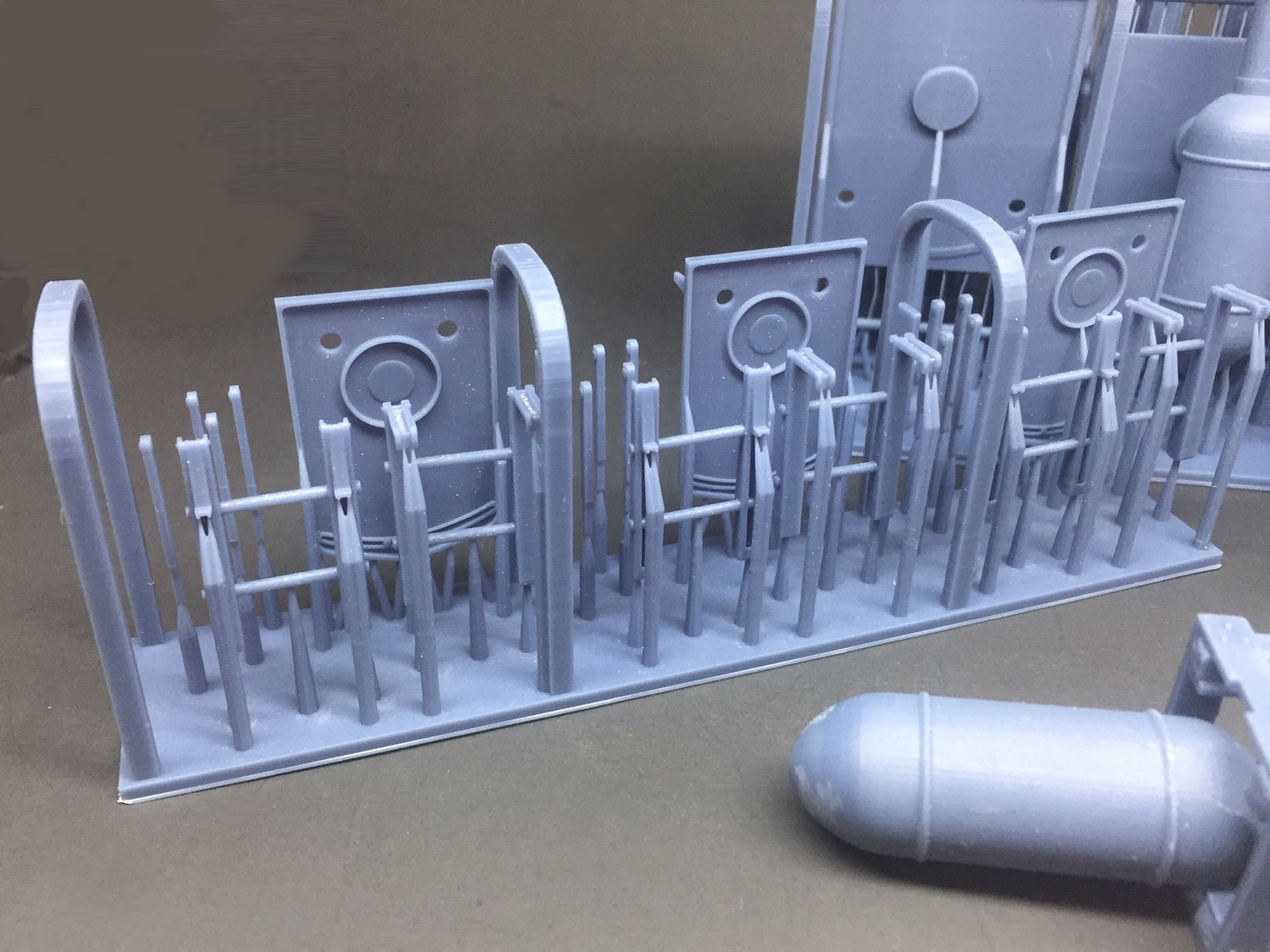

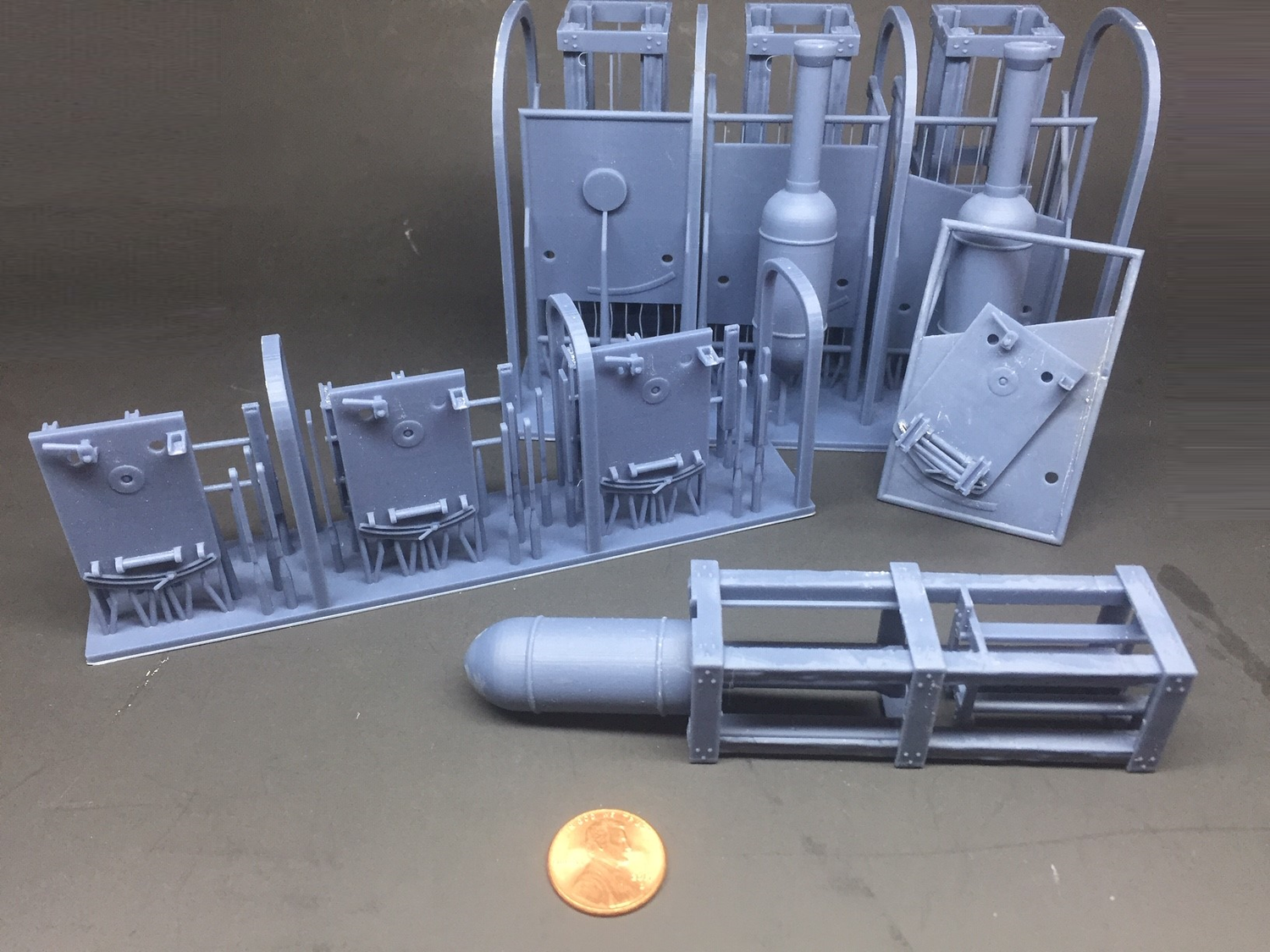

This superbly detailed 3D printed resin model.

Conversion kit for Des Werk, Dragon/Trumpeter and others.

Crisp, accurate and detailed 3D printing brings this icon of history to life.

Small parts count, but huge amount of detail.
